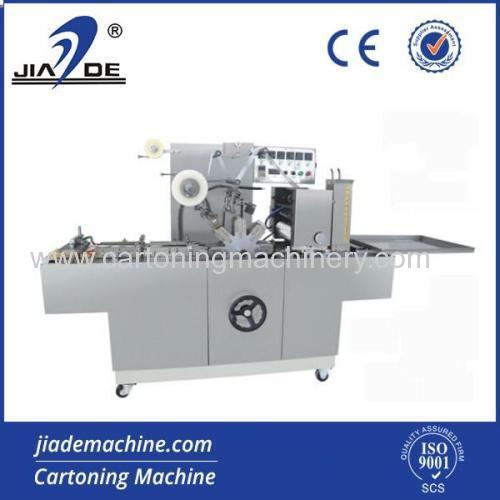

Tridimensional Cellophane Packaging Machine

Model: JDZ-300A
Place of Origin: Zhejiang,China (Mainland)
Processing: Wrapping Machine
Automatic Grade: Automatic
Type: General
Usage: Outer
Packaging: Plastic
Brand Name: jiade
Patent Rights: jiade brand
Export Area: all over the world

inquiry

skype  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Trade Term:FOBProduction Capacity:30sets/month
Payment Terms:L/C, T/TPacking:wooden
Min. Order:1 Set/SetsDelivery Date:30 days
Means of Transport:Ocean, Air

Instruction:
TMP Series of Automatic Tridimensional Cellophane Packaging Machine, which is mainly applied to the outside decoration packaging of square-shaped box-packaged things of such industries as medicine, food, daily chemistry, cosmetics, video products rubbers, IT etc. For example, the medical box, chewing gum, healthy products, tea-leaf, cubic sugar, condom, eraser, mosquito-repellent incense, cigarette, tape, VCD (CD)disk, poker, soap, square-shaped battery and floppy disk etc. It has the function of anti-moisture and anti-falsification, and also enhances the product level and additional value. It can combine the box-packaged machine and code-spraying machine to manufacture.
Main Features:
1.Compact and reasonable structure, stable and advanced performance, simple and convenient operation and maintenance.
2.Adopt multi-function digital-indication frequency converter, and stepless variable speed.
3.The digital indication of thermal seal temperature is clear.
4.Have the function of automatic feeding and automatic feeding and automatic counting etc.
5.In the transmission part, there are all varieties of protection mechanism and indication of malfunction.
6.Film-feeding clutch for trial operation is set without the wasting of packing material.
Main technical parameters:

Package material
BOPP film, PVC film, etc
Production capacity
5-70packs/min.
Packaging size
L(60-280)xW(40-140)xH(10-70)mm
Power of supply
AC220V 50Hz, 6.5Kw (single phase)
Weight
800kg
Outline dimensions (LxWxH)
2400x800x1600mm

Tridimensional Cellophane Packaging Machine

Tridimensional Cellophane Packaging Machine


Tridimensional Cellophane Packaging Machine

Tridimensional Cellophane Packaging Machine
